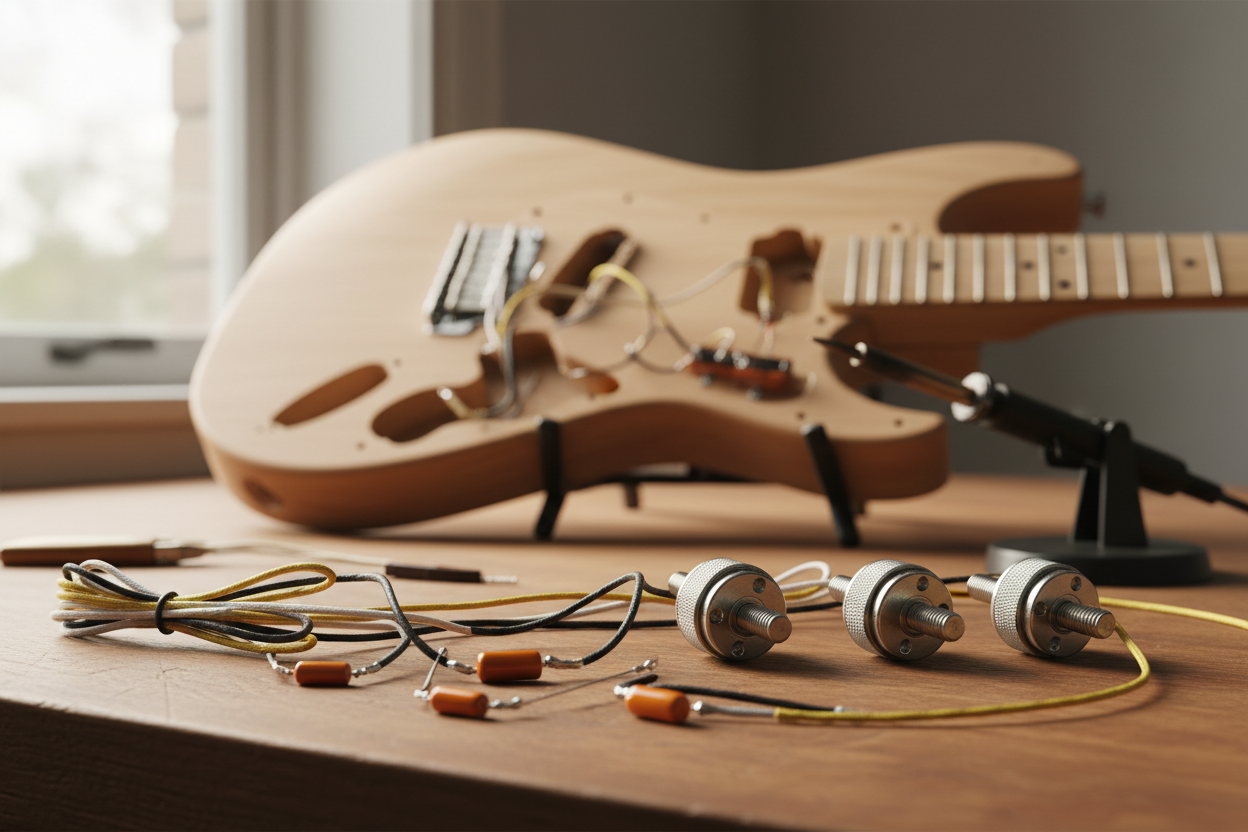

Electronics shape the tone of custom electric guitars just as much as pickups do. Potentiometers, capacitors, and wiring all affect what you hear when you plug in. Most players focus on pickups and ignore electronics entirely — that's a mistake.
Here in Bend, we wire custom electric guitars with quality components chosen for tonal goals. If you haven't settled on pickups yet, read our pickup guide first — the two decisions need to be made together.
Why Electronics Matter
Pickups create the signal. Electronics shape that signal before it reaches your amplifier. Bad components make good pickups sound worse. For musicians, electronics need to preserve the tone you want. For collectors building tribute guitars, electronics need to match the original specs — getting those details right affects authenticity.
Potentiometers Control Volume and Tone
Potentiometers are the volume and tone knobs on custom electric guitars. They control signal flow but also affect tone even when turned all the way up. Pot value matters — 250k pots are standard for single coil pickups, 500k pots are standard for humbuckers.
250k pots let less high end through, which works with bright single coils. 500k pots let more high end through, which works with darker humbuckers. Wrong pot values change your tone significantly — no amount of amp tweaking fixes a mismatched pot. Quality pots last decades. Cheap pots scratch and fail.
Capacitors Shape Your Tone Control
Capacitors work with the tone pot to roll off high frequencies. When you turn the tone knob down, the capacitor bleeds high end to ground. Standard values are .022 microfarads for single coils and .047 microfarads for humbuckers. Smaller values give you more gradual control. Larger values make the tone control more aggressive.
Capacitor type affects tone too. Orange Drop capacitors sound clear and open. Here in Central Oregon, we use quality capacitors — the difference is audible to players who use their tone controls.
Wiring Layout Affects Tone
How components get wired together matters. Standard wiring has the tone control always affecting the signal — even with the tone knob on 10, the capacitor loads down the pickups slightly. Vintage wiring removes the capacitor from the circuit when the tone knob is on 10, giving a brighter and more open tone.
For custom electric guitars, we can wire either way. Musicians should try both. Collectors building vintage tributes should use vintage wiring for authenticity.
Wire Quality and Shielding
The wire connecting components affects tone. Cheap wire with poor shielding picks up noise. Quality shielded wire stays quiet and prevents electromagnetic interference. We use cloth covered wire for vintage style builds and modern shielded wire for contemporary builds. We keep wire runs as short as practical to preserve clarity.
Grounding and Noise Issues
Proper grounding keeps custom electric guitars quiet. Bad grounding causes hum and buzz. All metal parts need to be grounded — bridge, tailpiece, control plate, shielding. Single coil pickups still hum because of their design, but proper grounding keeps that hum from getting worse. Humbuckers should be nearly silent with good grounding. This ties directly into avoiding the shielding mistakes that plague poorly built custom guitars.
Solder Joint Quality
How components get soldered affects reliability. Cold solder joints cause intermittent problems — the guitar works sometimes and cuts out other times. Here in Bend, we check every solder joint before the guitar ships. For musicians, reliability matters on the gig. For collectors, quality soldering is visible under close inspection.
Switch Quality and Type
The pickup selector switch affects tone and reliability. Cheap switches fail and crackle. Good switches last for decades. Fender style guitars get five way switches. Gibson style guitars get three way toggle switches. The switch needs to make clean contact every time.
Output Jack Reliability
The output jack takes abuse — you plug in and unplug constantly. Cheap jacks fail. Quality output jacks use better materials and hold the cable firmly. We use Switchcraft jacks in most builds. Jack mounting needs to be secure — loose mounting stresses the wiring and causes failures at the worst possible times.
Making Your Electronics Choices
Choosing electronics starts with understanding your goals — vintage accuracy, maximum clarity, or specific tonal shaping? Musicians should think about their full signal chain: guitar, cable, pedals, and amp all work together. Electronics are one piece of that puzzle.
Collectors should research the guitars they're tributing — what pot values were used, what capacitor type, what wiring layout. Getting these details right matters for authenticity.
Electronics affect your custom electric guitar every time you touch the volume or tone knobs. Choose components that serve your purpose — not just whatever is cheapest or easiest.
